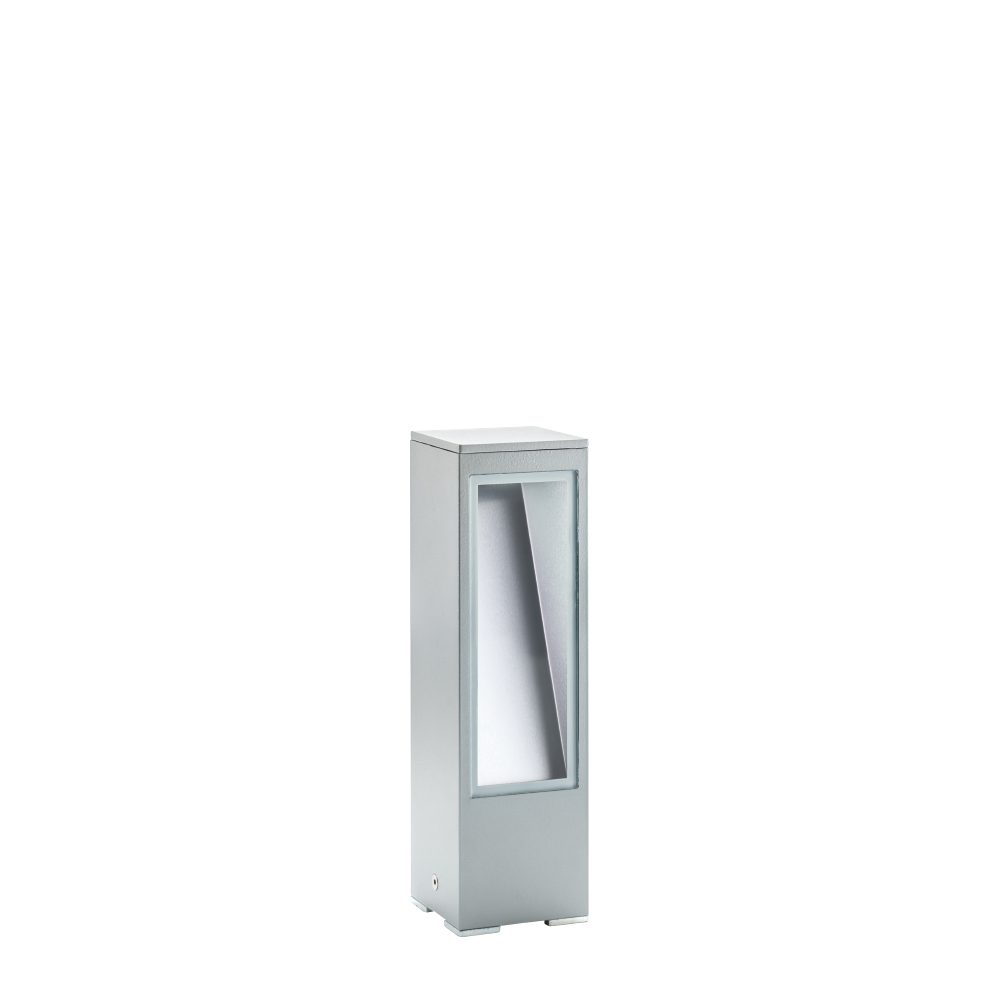

PIN

Nel descrivere un prodotto come pin, sarebbe facile puntare tutto sull’esile ma resistente struttura e sull’elegante minimalismo che lo caratterizzano, certo. Ma francesconi può puntare su molti altri assi nella manica, il primo fra tutti riguardante la facilità di connessione, affidata a un ingegnoso sistema a gel che permette un cablaggio sicuro e isolato, senza ricorrere a soluzioni precablate che hanno ben poca convenienza pratica o affidabilità. E noi, all’affidabilità, teniamo molto.

  • Struttura in alluminio 6026 anticorodal.
  • Doppia verniciatura extra resistente (test in nebbia salina UNI ISO9227:2012).
  • Base di fissaggio in acciaio inox 430.
  • Viti a brugola in acciaio inox A4.
  • Diffusore in vetro temprato extrachiaro.
  • Apparecchio predisposto per singola entrata pre-cablato con cavo in neoprene e connettore rapido acqua stop IP68.
  • Guarnizioni in silicone.
  • Conforme alle norme EN60598-1 e relative parti seconde.
  • Temperatura di esercizio: Ta Min: -20°C Max: +50°C

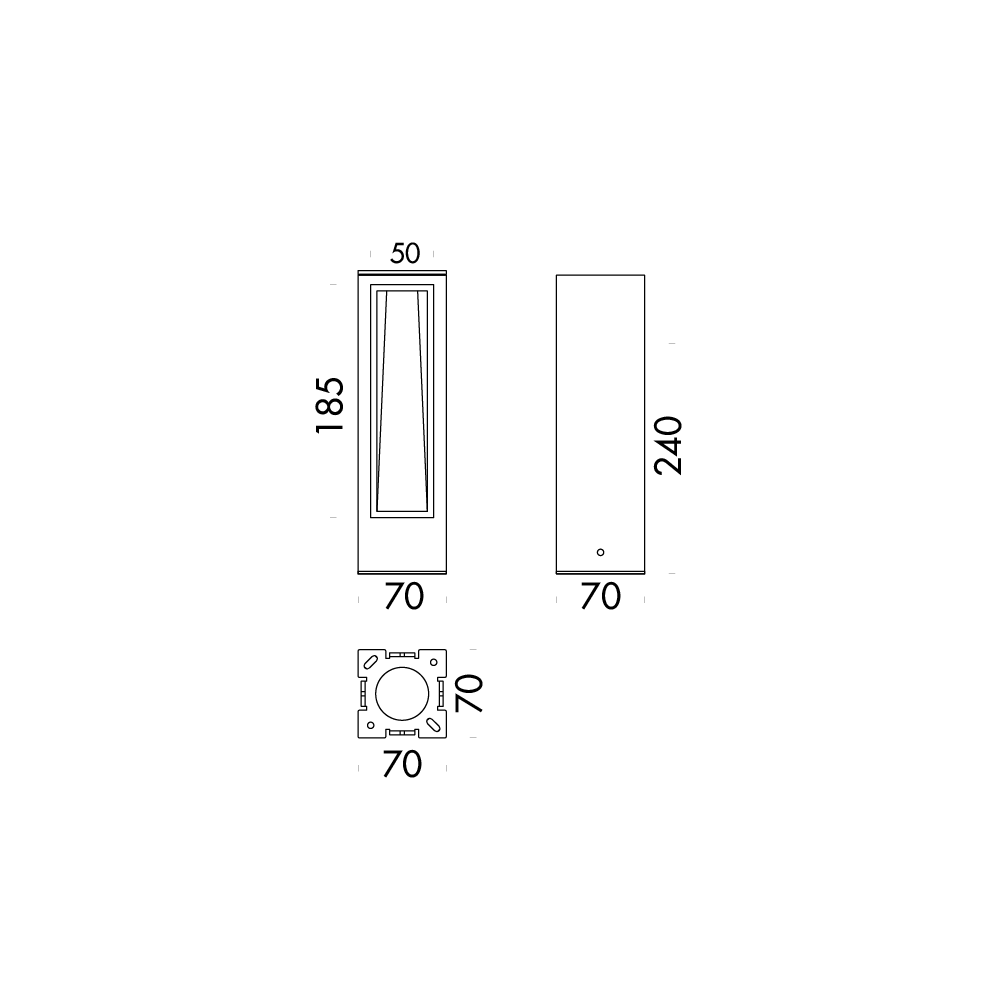

PIN 240 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 240 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61001 1.2.64 ORDER
287,10 €
1
1
.2
8.0
450
.64 1 opening
PIN 240 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 240 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61001 1.3.64 ORDER
287,10 €
1
1
.3
8.0
450
.64 1 opening
PIN 240 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 240 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61001 1.4.64 ORDER
287,10 €
1
1
.4
8.0
469
.64 1 opening
PIN 240 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 240 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61001 4.2.64 ORDER
287,10 €
4
4
.2
8.0
450
.64 1 opening
PIN 240 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 240 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61001 4.3.64 ORDER
287,10 €
4
4
.3
8.0
450
.64 1 opening
PIN 240 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 240 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61001 4.4.64 ORDER
287,10 €
4
4
.4
8.0
469
.64 1 opening
PIN 240 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 240 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61001 8.2.64 ORDER
287,10 €
8
8
.2
8.0
450
.64 1 opening
PIN 240 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 240 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61001 8.3.64 ORDER
287,10 €
8
8
.3
8.0
450
.64 1 opening
PIN 240 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 240 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61001 8.4.64 ORDER
287,10 €
8
8
.4
8.0
469
.64 1 opening
PIN 240 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 240 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61002 1.2.67 ORDER
311,10 €
1
1
.2
8.0
572
.67 2 openings
PIN 240 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 240 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61002 1.3.67 ORDER
311,10 €
1
1
.3
8.0
572
.67 2 openings
PIN 240 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 240 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61002 1.4.67 ORDER
311,10 €
1
1
.4
8.0
595
.67 2 openings
PIN 240 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 240 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61002 4.2.67 ORDER
311,10 €
4
4
.2
8.0
572
.67 2 openings
PIN 240 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 240 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61002 4.3.67 ORDER
311,10 €
4
4
.3
8.0
572
.67 2 openings
PIN 240 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 240 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61002 4.4.67 ORDER
311,10 €
4
4
.4
8.0
595
.67 2 openings
PIN 240 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 240 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61002 8.2.67 ORDER
311,10 €
8
8
.2
8.0
572
.67 2 openings
PIN 240 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 240 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61002 8.3.67 ORDER
311,10 €
8
8
.3
8.0
572
.67 2 openings
PIN 240 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 240 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61002 8.4.67 ORDER
311,10 €
8
8
.4
8.0
595
.67 2 openings

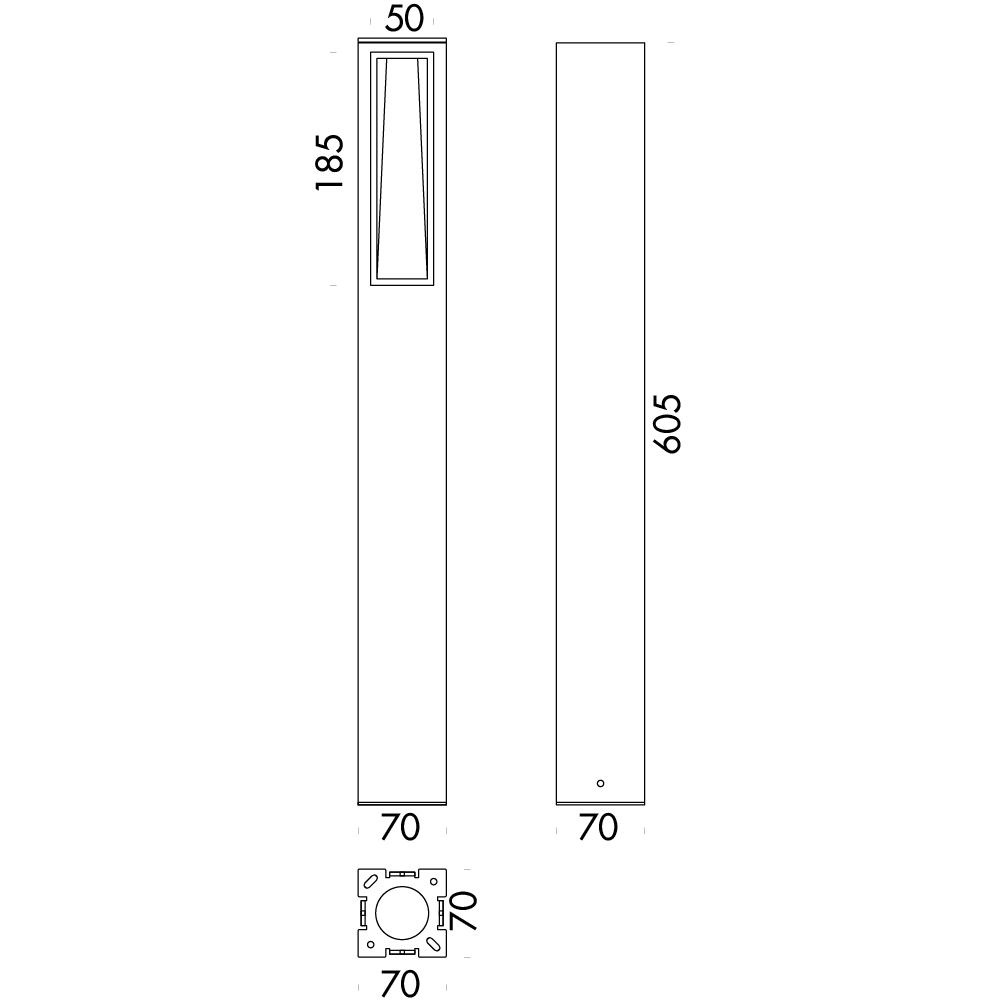

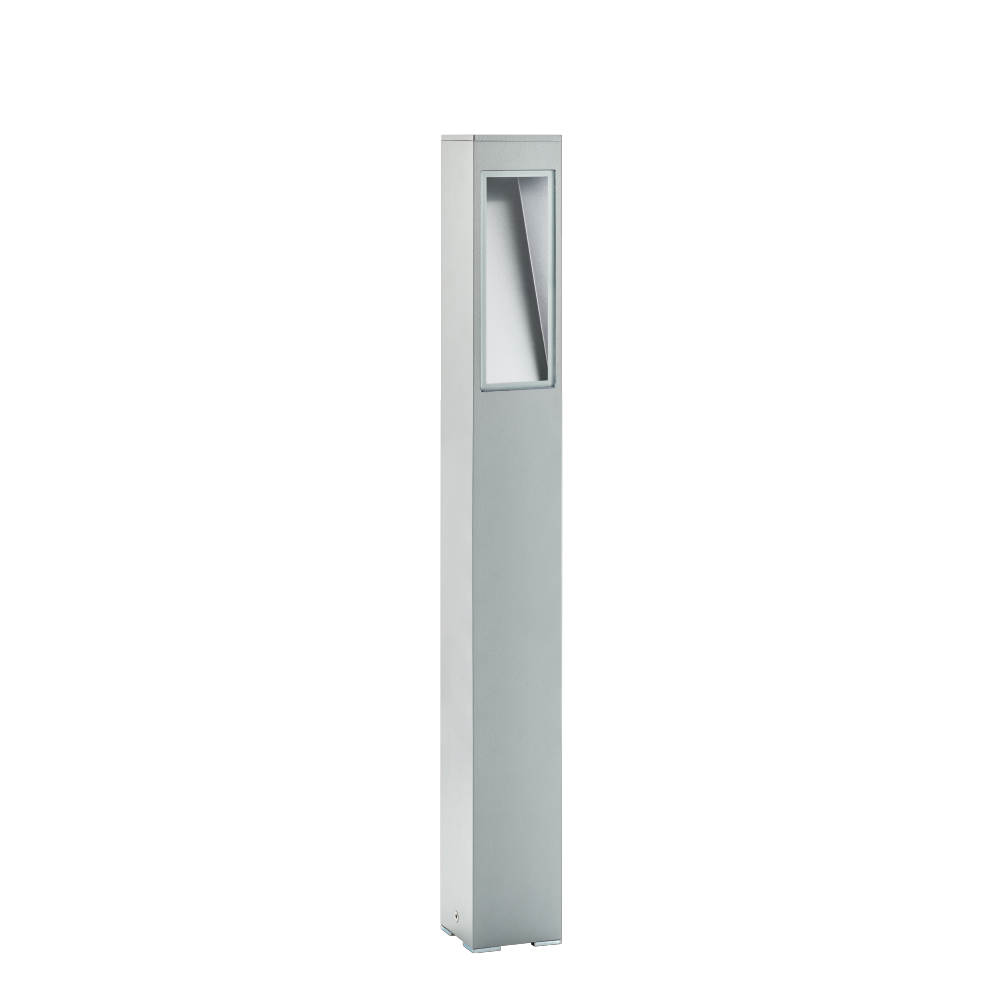

PIN 600 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 605 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61025 1.2.64 ORDER
407,10 €
1
1
.2
14.0
899,784
.64 1 opening
PIN 600 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 605 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61025 1.3.64 ORDER
407,10 €
1
1
.3
14.0
899,784
.64 1 opening
PIN 600 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 605 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61025 1.4.64 ORDER
407,10 €
1
1
.4
14.0
937,275
.64 1 opening
PIN 600 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 605 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61025 4.2.64 ORDER
407,10 €
4
4
.2
14.0
899,784
.64 1 opening
PIN 600 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 605 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61025 4.3.64 ORDER
407,10 €
4
4
.3
14.0
899,784
.64 1 opening
PIN 600 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 605 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61025 4.4.64 ORDER
407,10 €
4
4
.4
14.0
937,275
.64 1 opening
PIN 600 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 605 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61025 8.2.64 ORDER
407,10 €
8
8
.2
14.0
899,784
.64 1 opening
PIN 600 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 605 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61025 8.3.64 ORDER
407,10 €
8
8
.3
14.0
899,784
.64 1 opening
PIN 600 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 605 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61025 8.4.64 ORDER
407,10 €
8
8
.4
14.0
937,275
.64 1 opening

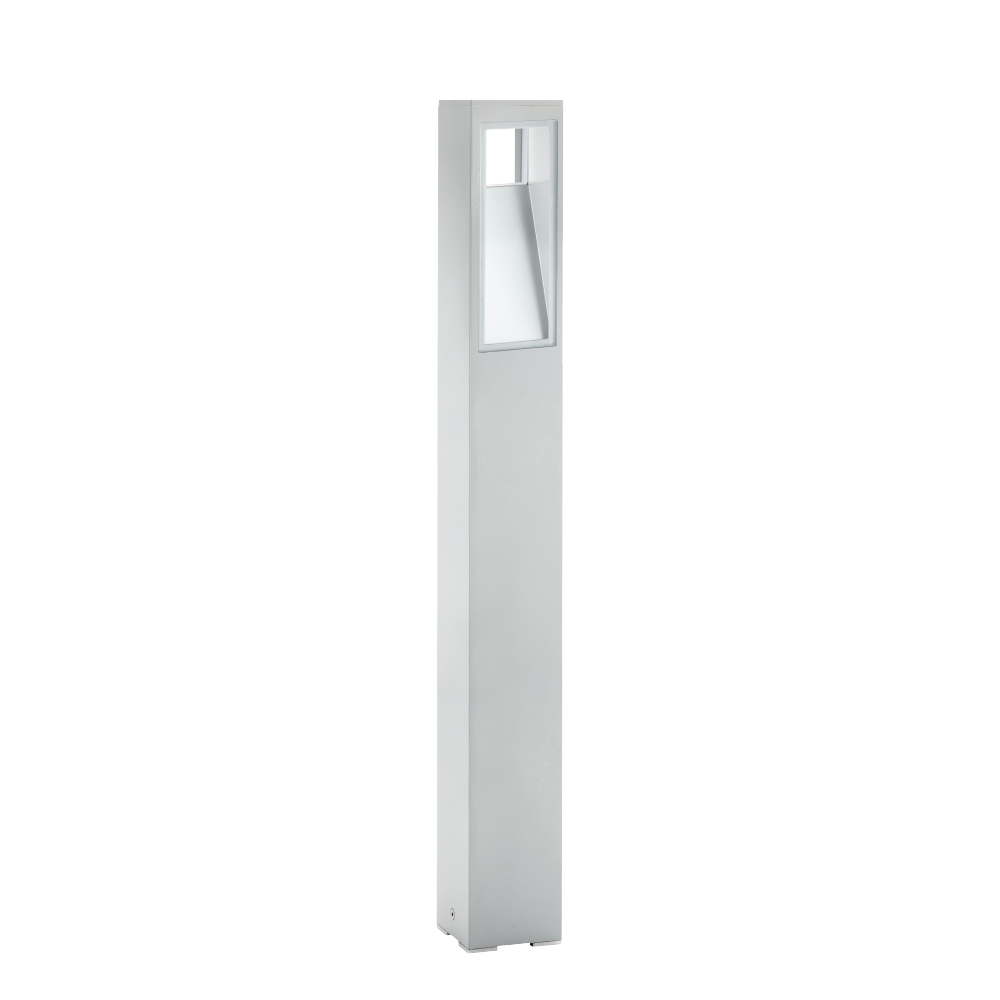

PIN 600 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 605 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61026 1.2.67 ORDER
424,80 €
1
1
.2
14.0
1142,674
.67 2 openings
PIN 600 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 605 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61026 1.3.67 ORDER
424,80 €
1
1
.3
14.0
1142,674
.67 2 openings
PIN 600 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 605 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61026 1.4.67 ORDER
424,80 €
1
1
.4
14.0
1190,285
.67 2 openings
PIN 600 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 605 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61026 4.2.67 ORDER
424,80 €
4
4
.2
14.0
1142,674
.67 2 openings
PIN 600 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 605 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61026 4.3.67 ORDER
424,80 €
4
4
.3
14.0
1142,674
.67 2 openings
PIN 600 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 605 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61026 4.4.67 ORDER
424,80 €
4
4
.4
14.0
1190,285
.67 2 openings
PIN 600 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 605 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61026 8.2.67 ORDER
424,80 €
8
8
.2
14.0
1142,674
.67 2 openings
PIN 600 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 605 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61026 8.3.67 ORDER
424,80 €
8
8
.3
14.0
1142,674
.67 2 openings
PIN 600 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 605 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61026 8.4.67 ORDER
424,80 €
8
8
.4
14.0
1190,285
.67 2 openings

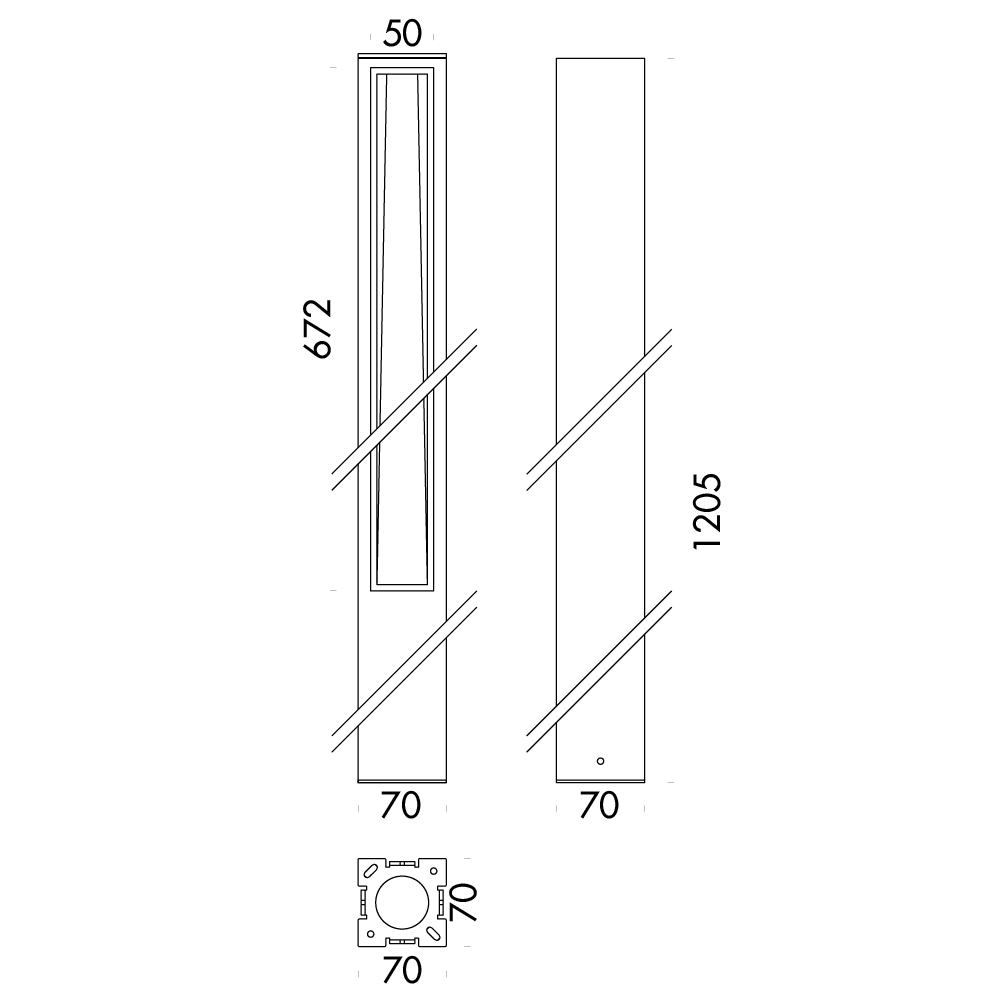

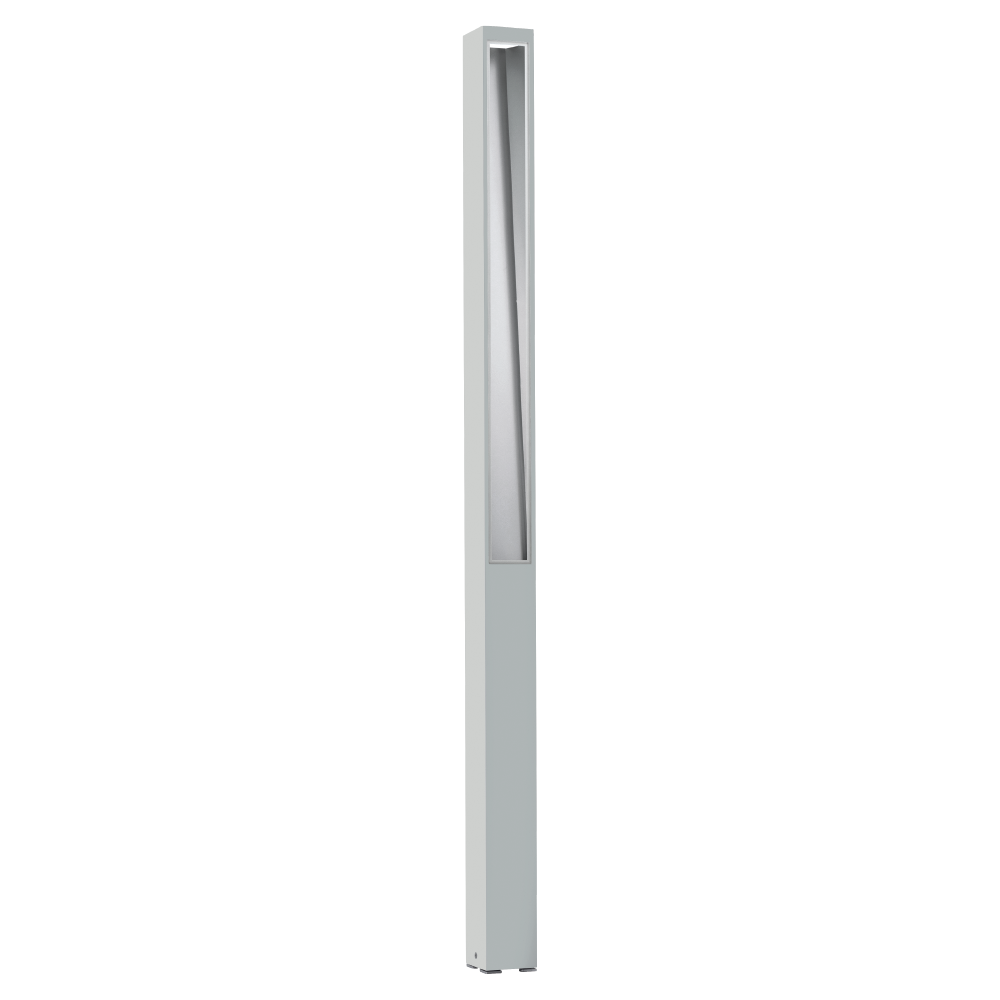

PIN 1200 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 1205 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61037 1.2.64 ORDER
558,30 €
1
1
.2
14.0
899,784
.64 1 opening
PIN 1200 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 1205 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61037 1.3.64 ORDER
558,30 €
1
1
.3
14.0
899,784
.64 1 opening
PIN 1200 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 1205 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61037 1.4.64 ORDER
558,30 €
1
1
.4
14.0
937,275
.64 1 opening
PIN 1200 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 1205 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61037 4.2.64 ORDER
558,30 €
4
4
.2
14.0
899,784
.64 1 opening
PIN 1200 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 1205 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61037 4.3.64 ORDER
558,30 €
4
4
.3
14.0
899,784
.64 1 opening
PIN 1200 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 1205 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61037 4.4.64 ORDER
558,30 €
4
4
.4
14.0
937,275
.64 1 opening
PIN 1200 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 1205 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61037 8.2.64 ORDER
558,30 €
8
8
.2
14.0
899,784
.64 1 opening
PIN 1200 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 1205 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61037 8.3.64 ORDER
558,30 €
8
8
.3
14.0
899,784
.64 1 opening
PIN 1200 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 1205 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61037 8.4.64 ORDER
558,30 €
8
8
.4
14.0
937,275
.64 1 opening
PIN 1200 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 1205 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61038 1.2.67 ORDER
611,30 €
1
1
.2
14.0
1142,674
.67 2 openings

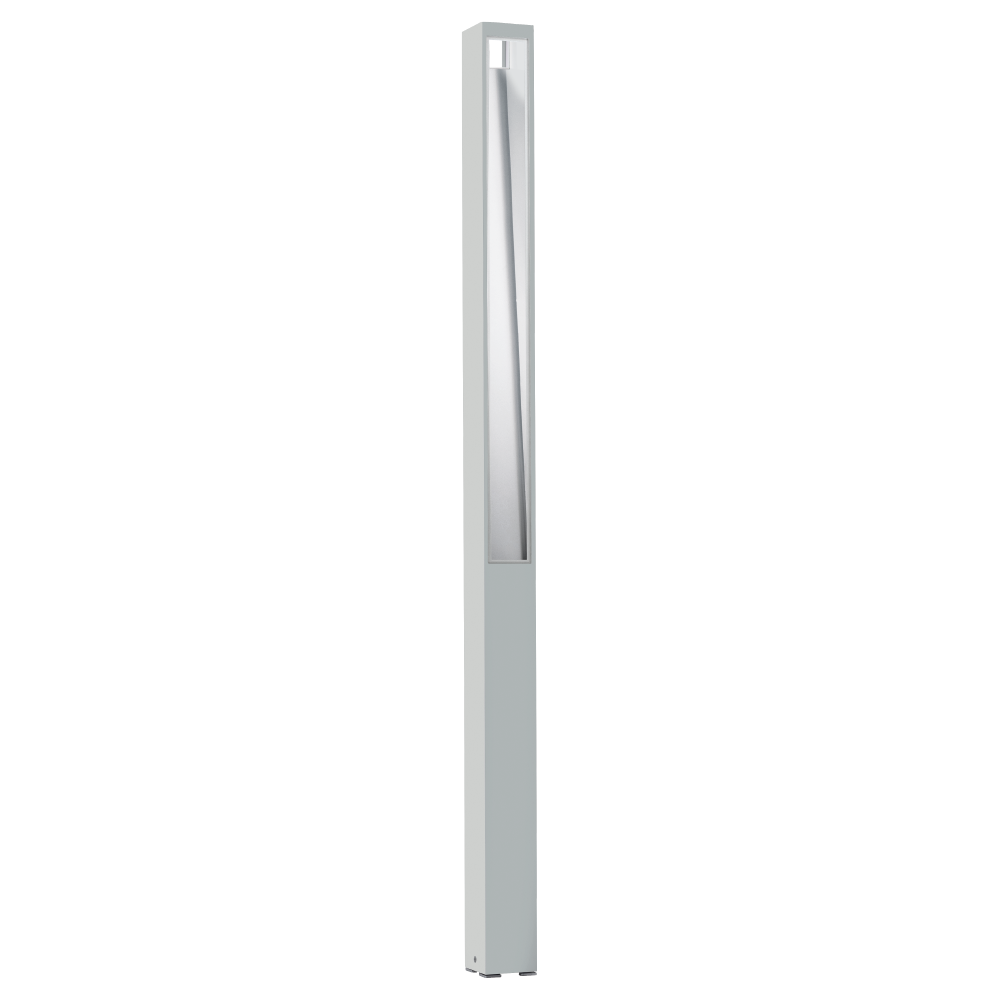

PIN 1200 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 1205 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61038 1.3.67 ORDER
611,30 €
1
1
.3
14.0
1142,674
.67 2 openings
PIN 1200 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 1205 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61038 1.4.67 ORDER
611,30 €
1
1
.4
14.0
1190,285
.67 2 openings
PIN 1200 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 1205 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61038 4.2.67 ORDER
611,30 €
4
4
.2
14.0
1142,674
.67 2 openings
PIN 1200 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 1205 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61038 4.3.67 ORDER
611,30 €
4
4
.3
14.0
1142,674
.67 2 openings
PIN 1200 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 1205 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61038 4.4.67 ORDER
611,30 €
4
4
.4
14.0
1190,285
.67 2 openings
PIN 1200 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 1205 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61038 8.2.67 ORDER
611,30 €
8
8
.2
14.0
1142,674
.67 2 openings
PIN 1200 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 1205 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61038 8.3.67 ORDER
611,30 €
8
8
.3
14.0
1142,674
.67 2 openings
PIN 1200 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 1205 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61038 8.4.67 ORDER
611,30 €
8
8
.4
14.0
1190,285
.67 2 openings

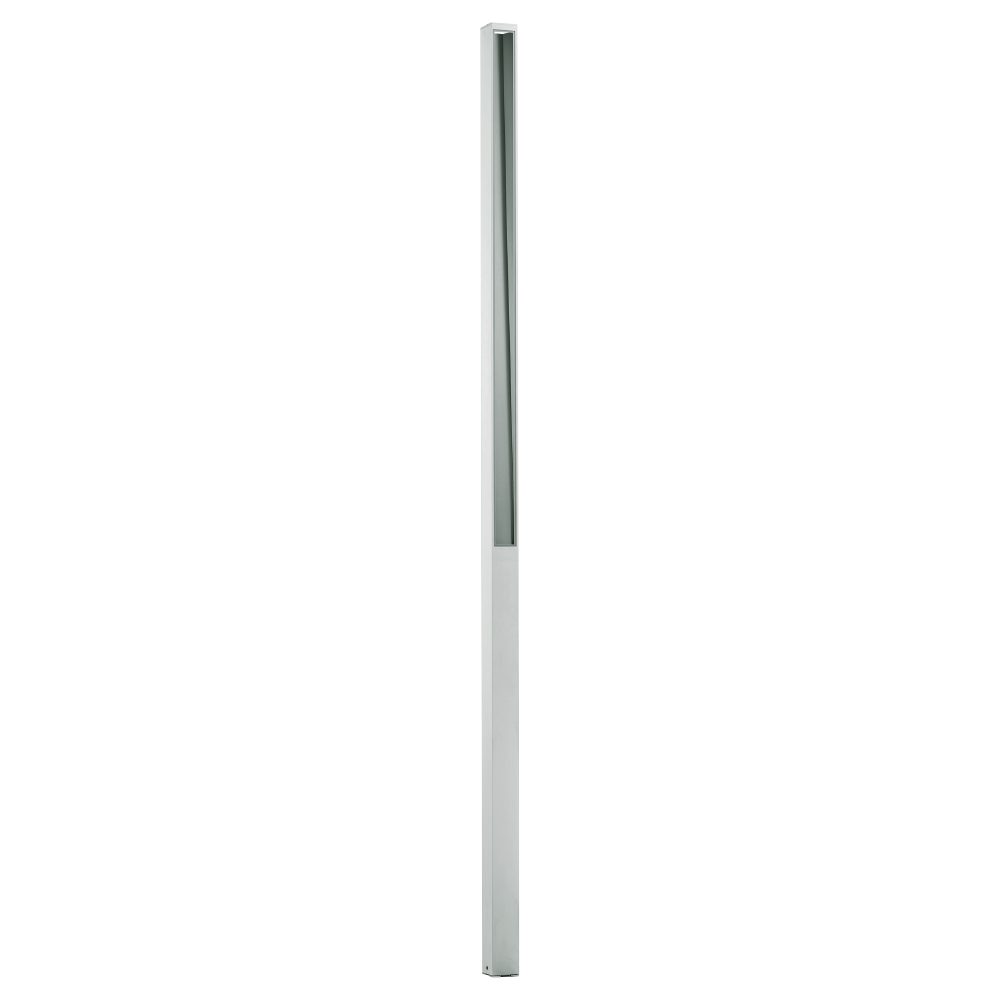

PIN 2400 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 2407 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61042 1.2.64 ORDER
688,60 €
1
1
.2
14.0
899,784
.64 1 opening
PIN 2400 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 2407 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61042 1.3.64 ORDER
688,60 €
1
1
.3
14.0
899,784
.64 1 opening
PIN 2400 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 2407 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61042 1.4.64 ORDER
688,60 €
1
1
.4
14.0
937,275
.64 1 opening
PIN 2400 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 2407 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61042 4.2.64 ORDER
688,60 €
4
4
.2
14.0
899,784
.64 1 opening
PIN 2400 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 2407 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61042 4.3.64 ORDER
688,60 €
4
4
.3
14.0
899,784
.64 1 opening
PIN 2400 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 2407 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61042 4.4.64 ORDER
688,60 €
4
4
.4
14.0
937,275
.64 1 opening
PIN 2400 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 2407 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61042 8.2.64 ORDER
688,60 €
8
8
.2
14.0
899,784
.64 1 opening
PIN 2400 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 2407 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61042 8.3.64 ORDER
688,60 €
8
8
.3
14.0
899,784
.64 1 opening
PIN 2400 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 2407 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61042 8.4.64 ORDER
688,60 €
8
8
.4
14.0
937,275
.64 1 opening
PIN 2400 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 2407 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61043 1.2.67 ORDER
725,00 €
1
1
.2
14.0
1142,674
.67 2 openings

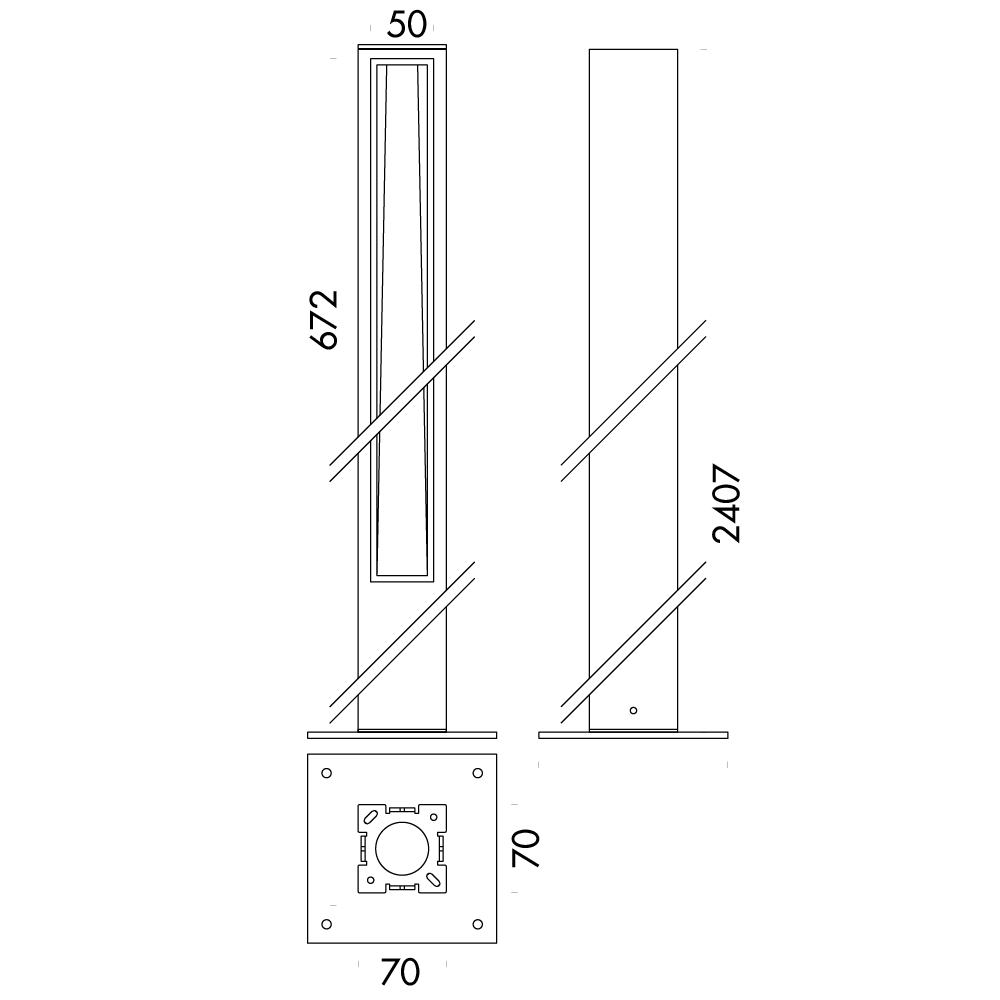

PIN 2400 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 2407 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61043 1.3.67 ORDER
725,00 €
1
1
.3
14.0
1142,674
.67 2 openings
PIN 2400 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 2407 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61043 1.4.67 ORDER
725,00 €
1
1
.4
14.0
1190,285
.67 2 openings
PIN 2400 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 2407 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61043 4.2.67 ORDER
725,00 €
4
4
.2
14.0
1142,674
.67 2 openings
PIN 2400 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 2407 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61043 4.3.67 ORDER
725,00 €
4
4
.3
14.0
1142,674
.67 2 openings
PIN 2400 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 2407 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61043 4.4.67 ORDER
725,00 €
4
4
.4
14.0
1190,285
.67 2 openings
PIN 2400 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 2407 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61043 8.2.67 ORDER
725,00 €
8
8
.2
14.0
1142,674
.67 2 openings
PIN 2400 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 2407 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61043 8.3.67 ORDER
725,00 €
8
8
.3
14.0
1142,674
.67 2 openings
PIN 2400 mm
Lunghezza / diametro : 70 mm
Profondità : 70 mm
Altezza : 2407 mm
Code
Price
Product
Product
LED
W Led (real)
Lumen Tc 70° (real)
Ottica
61043 8.4.67 ORDER
725,00 €
8
8
.4
14.0
1190,285
.67 2 openings
