Pin

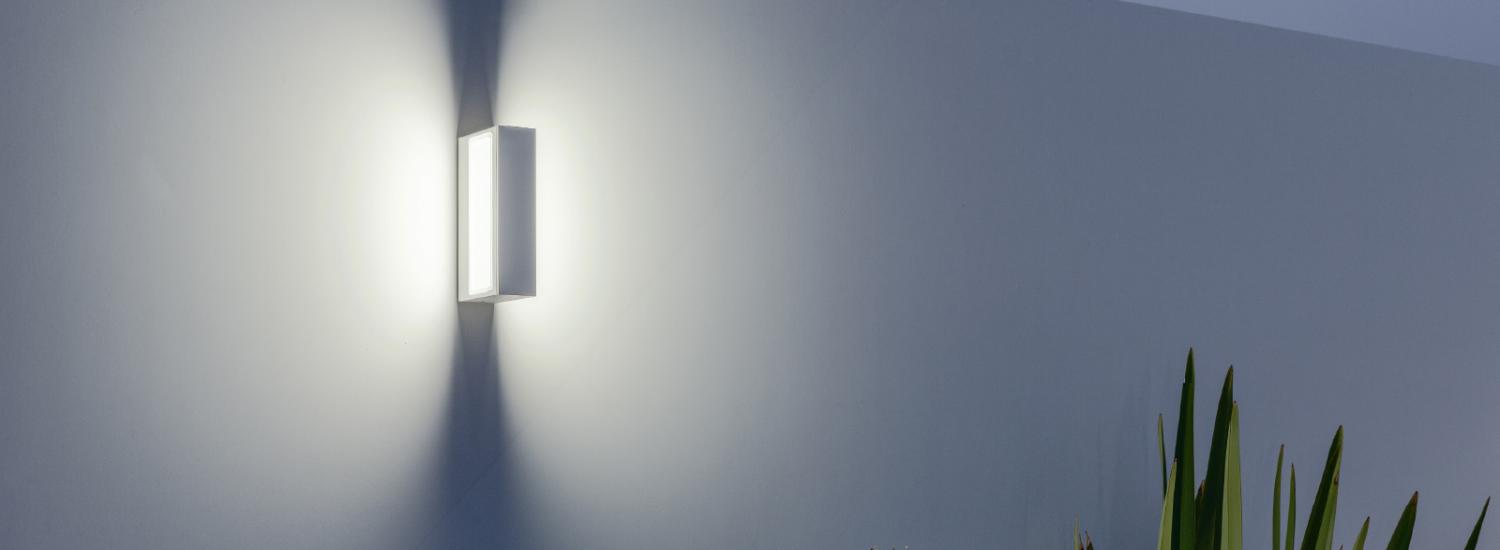

Geometrie essenziali e sistema di fissaggio totalmente a scomparsa fanno di PIN un corpo illuminante finemente adatto per qualsiasi contesto abitativo o direzionale. La struttura in alluminio primario e i diffusori in vetro rendono il prodotto un elegante parallelepipedo capace di mimetizzarsi e integrarsi alle moderne architetture così come nei contesti storici e artistici. Le sorgenti LED di ultima generazione completano il quadro di una collezione caratterizzata da estrema qualità tecnico formale che non rinuncia alla riduzione dei consumi energetici e alla massima resa illuminotecnica.

SPECIFICHE PRODOTTO

Corpo in alluminio estruso EN AW6060. Base di fissaggio in acciaio. Doppio ciclo di verniciatura ad alta resistenza. Diffusore in vetro temperato 3mm. Viti di chiusura in acciaio inox A4. Guarnizione in Epdm. Singolo ingresso del cavo con pressacavo in ottone nichleato IP68 M12 pre-cablato con cavo in neoprene completo di sistema H20 STOP. Conforme alle norme EN60598-1 e relative parti seconde.

DIMENSIONI
APPLICAZIONI DISPONIBILI

Flitro per LED
Flitro per ottica
Code
Product
LED
W Led
Ottica
31001 1.2.05
PIN applique wall effect single emission
.2
13.0 W
.05
1
1005 lm (.3)1036 lm (.4)
Code
Product
LED
W Led
Ottica
31001 1.3.05
PIN applique wall effect single emission
.3
13.0 W
.05
1
1005 lm (.3)1036 lm (.4)
Code
Product
LED
W Led
Ottica
31001 1.4.05
PIN applique wall effect single emission
.4
13.0 W
.05
1
1005 lm (.3)1036 lm (.4)
Code
Product
LED
W Led
Ottica
31001 2.2.05
PIN applique wall effect single emission
.2
13.0 W
.05
2
1005 lm (.3)1036 lm (.4)
Code
Product
LED
W Led
Ottica
31001 2.3.05
PIN applique wall effect single emission
.3
13.0 W
.05
2
1005 lm (.3)1036 lm (.4)
Code
Product
LED
W Led
Ottica
31001 2.4.05
PIN applique wall effect single emission
.4
13.0 W
.05
2
1005 lm (.3)1036 lm (.4)
Code
Product
LED
W Led
Ottica
31001 4.2.05
PIN applique wall effect single emission
.2
13.0 W
.05
4
1005 lm (.3)1036 lm (.4)
Code
Product
LED
W Led
Ottica
31001 4.3.05
PIN applique wall effect single emission
.3
13.0 W
.05
4
1005 lm (.3)1036 lm (.4)
Code
Product
LED
W Led
Ottica
31001 4.4.05
PIN applique wall effect single emission
.4
13.0 W
.05
4
1005 lm (.3)1036 lm (.4)
Code
Product
LED
W Led
Ottica
31002 1.2.05
PIN applique wall effect single emission
.2
10.0 W
.05
1
333 lm (.3)343 lm (.4)
Code
Product
LED
W Led
Ottica
31002 1.3.05
PIN applique wall effect single emission
.3
10.0 W
.05
1
333 lm (.3)343 lm (.4)
Code
Product
LED
W Led
Ottica
31002 1.4.05
PIN applique wall effect single emission
.4
10.0 W
.05
1
333 lm (.3)343 lm (.4)
Code
Product
LED
W Led
Ottica
31002 2.2.05
PIN applique wall effect single emission
.2
10.0 W
.05
2
333 lm (.3)343 lm (.4)
Code
Product
LED
W Led
Ottica
31002 2.3.05
PIN applique wall effect single emission
.3
10.0 W
.05
2
333 lm (.3)343 lm (.4)
Code
Product
LED
W Led
Ottica
31002 2.4.05
PIN applique wall effect single emission
.4
10.0 W
.05
2
333 lm (.3)343 lm (.4)
Code
Product
LED
W Led
Ottica
31002 4.2.05
PIN applique wall effect single emission
.2
10.0 W
.05
4
333 lm (.3)343 lm (.4)
Code
Product
LED
W Led
Ottica
31002 4.3.05
PIN applique wall effect single emission
.3
10.0 W
.05
4
333 lm (.3)343 lm (.4)
Code
Product
LED
W Led
Ottica
31002 4.4.05
PIN applique wall effect single emission
.4
10.0 W
.05
4
333 lm (.3)343 lm (.4)
Code
Product
LED
W Led
Ottica
31022 1.2.05
PIN applique wall effect double emission
.2
2x13.0 W
.05
1
2x1005 lm (.3)2x1036 lm (.4)
Code
Product
LED
W Led
Ottica
31022 1.3.05
PIN applique wall effect double emission
.3
2x13.0 W
.05
1
2x1005 lm (.3)2x1036 lm (.4)
Code
Product
LED
W Led
Ottica
31022 1.4.05
PIN applique wall effect double emission
.4
2x13.0 W
.05
1
2x1005 lm (.3)2x1036 lm (.4)
Code
Product
LED
W Led
Ottica
31022 2.2.05
PIN applique wall effect double emission
.2
2x13.0 W
.05
2
2x1005 lm (.3)2x1036 lm (.4)
Code
Product
LED
W Led
Ottica
31022 2.3.05
PIN applique wall effect double emission
.3
2x13.0 W
.05
2
2x1005 lm (.3)2x1036 lm (.4)
Code
Product
LED
W Led
Ottica
31022 2.4.05
PIN applique wall effect double emission
.4
2x13.0 W
.05
2
2x1005 lm (.3)2x1036 lm (.4)
Code
Product
LED
W Led
Ottica
31022 4.2.05
PIN applique wall effect double emission
.2
2x13.0 W
.05
4
2x1005 lm (.3)2x1036 lm (.4)
Code
Product
LED
W Led
Ottica
31022 4.3.05
PIN applique wall effect double emission
.3
2x13.0 W
.05
4
2x1005 lm (.3)2x1036 lm (.4)
Code
Product
LED
W Led
Ottica
31022 4.4.05
PIN applique wall effect double emission
.4
2x13.0 W
.05
4
2x1005 lm (.3)2x1036 lm (.4)
Code
Product
LED
W Led
Ottica
31023 1.2.05
PIN applique wall effect double emission
.2
10.0 W
.05
1
419 lm (.3)432 lm (.4)
Code
Product
LED
W Led
Ottica
31023 1.3.05
PIN applique wall effect double emission
.3
10.0 W
.05
1
419 lm (.3)432 lm (.4)
Code
Product
LED
W Led
Ottica
31023 1.4.05
PIN applique wall effect double emission
.4
10.0 W
.05
1
419 lm (.3)432 lm (.4)
Code
Product
LED
W Led
Ottica
31023 2.2.05
PIN applique wall effect double emission
.2
10.0 W
.05
2
419 lm (.3)432 lm (.4)
Code
Product
LED
W Led
Ottica
31023 2.3.05
PIN applique wall effect double emission
.3
10.0 W
.05
2
419 lm (.3)432 lm (.4)
Code
Product
LED
W Led
Ottica
31023 2.4.05
PIN applique wall effect double emission
.4
10.0 W
.05
2
419 lm (.3)432 lm (.4)
Code
Product
LED
W Led
Ottica
31023 4.2.05
PIN applique wall effect double emission
.2
10.0 W
.05
4
419 lm (.3)432 lm (.4)
Code
Product
LED
W Led
Ottica
31023 4.3.05
PIN applique wall effect double emission
.3
10.0 W
.05
4
419 lm (.3)432 lm (.4)
Code
Product
LED
W Led
Ottica
31023 4.4.05
PIN applique wall effect double emission
.4
10.0 W
.05
4
419 lm (.3)432 lm (.4)
