CUP
Design By G.M.Scutellà

The CUP Collection is the result of the precise need to combine form and function, just like it happens in architectural projects. Its minimal design made by Giuseppe Maurizio Scutellà, the absence of visible screws, characterizes the collection as a bright shell where details blend together in a single identity character. The ad hoc design of the LED board together with the made-on-purpose lens have allowed us to achieve a dual goal: identity design and unique lighting performance.

SPECIFICATIONS
  • Die-cast aluminum housing.
  • Aluminum fixing base (applique version).
  • Aluminum fixing base with 40 micron anodisation treatment (bollard version).
  • High-resistance double painting process (UNI ISO9227:2012 saline test compliant).
  • A4 stainless steel sealing allen screws.
  • High-efficiency PMMA optical lens.
  • Extra clear tempered glass.
  • Silicon gasket.
  • Single cable input, pre-assembled with neoprene cable and IP68 water-stop fast connector.
  • Compliant with EN60598-1 and related anexes.
  • Test operating temperature range between -20°C and +50°C.
wall effect

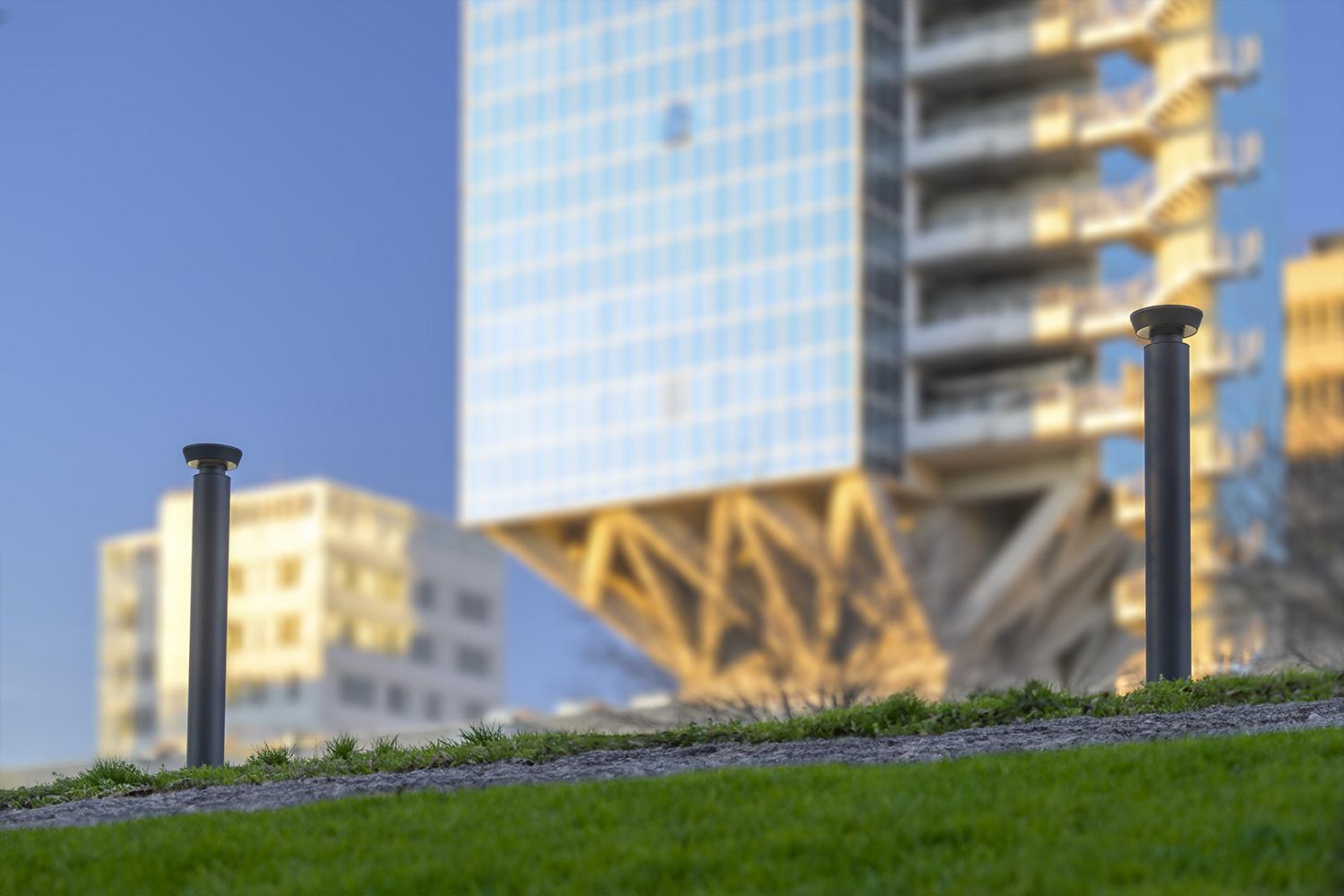

bollard
pole mounted
urban lighting
OUR JOB
SELECT A MODEL
SHOW
wall effect
bollard
pole mounted
urban lighting
wall effect
bollard
pole mounted
urban lighting
DETTAGLI PRODOTTO
APPLY FILTERS
Files:
DATA SHEET
LED
.4
W Led (real)
7.6
Lumen Tc 70° (real)
620
Optic
.64
L.O.R.
100
Class
I
Nominal Voltage
220-240V 50/60Hz
Dimmable
DALI2
IP
66
IK
10

ORDER 63508 4.4.64
